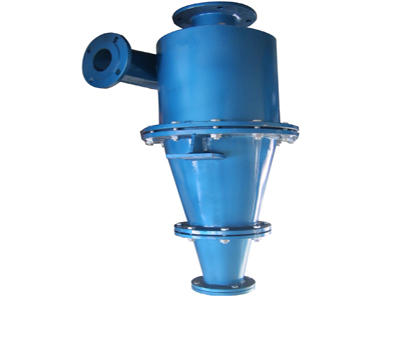

Hydrocyclone

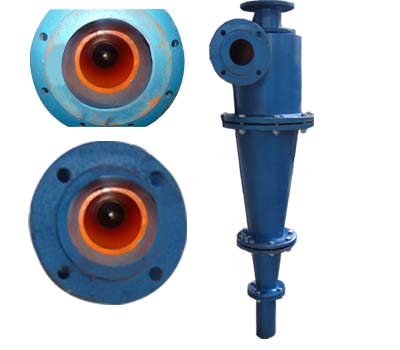

Hydro-cyclone can be following materials：
<< Polyurethane
<< Low carbon steel shell, polyurethane inner liner
<< Low carbon steel shell, ceramics inner liner
<< Low carbon steel shell, TG-NM compound materials inner liner
Description
Metal Mine Hydrocyclone widely applied in mine-chosen technique in various metal mines.
It mainly shows in the following works:
1. Classification for section I closed circuit grinding
2. Classification for section II closed circuit grinding
3. Regrinding for fine mine classification
4. Mud-removing before selection and after selection
5. Dam and backfill for gangue
Strcuture
1. Cylinder 2. Cone 3. Feeding pipe 4. Underflow port 5.Overflow pipe 6. Overflow pipe port
Working Principle
Feed the material from feeding pipe , under certifugal and gravity force the material will be rotating in high speed , the heavy product will through the underflow port to discharge , the light product will through the overflow port to discharge .
Technical specification
Model
Canister Interior
Dia.（mm）
Cone Angle
Overfall Pipe
Dia.（mm）
Bottom Exit
Dia.（mm）
Feeding
Pressure
Processing
Capacity
（m3/h）
Classification
FX350
350
20
80~120
30~70
0.04~0.3
60~100
50~150
182
15
50~120
230
FX300
300
20
65~115
20~50
0.04~0.3
45~85
50~150
108
15
40~100
169
FX250
250
20
60~100
16~45
0.06~0.35
40~60
40~100
72
15
40~100
77
10
30~100
83
FX200
200
20
40~65
16~32
0.06~0.35
25~40
40~100
60
15
30~100
64
10
30~100
69
FX150
150
20
30~45
8~22
0.06~0.35
11~20
30~74
20
15
30~74
22
8
30~74
60
FX125
125
17
25~40
8~18
0.06~0.35
8~15
20~100
10
8
20~74
12
Application
