XFD Flotation Cell

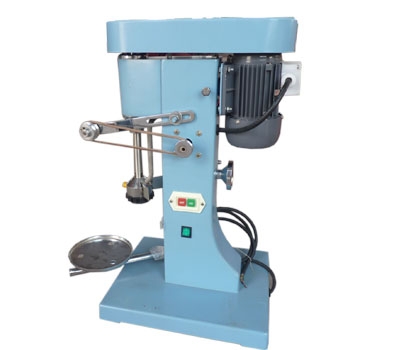

XFD Lab Flotation Cell
>> High precision for ore separation.
>> Small design, simple structure, easy operation and maintenance.
>> High separation efficiency.
>> Reliable performance, excellent quality, attractive price.
Description of lab flotation machine
XFD flotation machine is a updated product.It uses the frequency conversion technology, the impeller stepless speed regulation, digital display, adjust the precise, reliable operation.

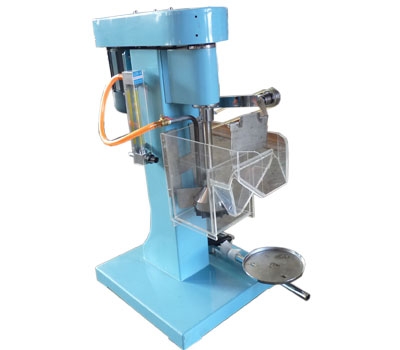

Structure of lab flotation machine
Technical Specification of lab flotation machine
Model
XFD0.5
XFD0.75
XFD1
XFD1.5
XFD3
Effective volume (L)
0.5
0.75
1
1.5
3
Impeller diameter(mm)
Ф45
Ф45
Ф55
Ф 60
Ф 70
Impeller rotating
speed(r/min)Ⅰ
2590
2590
2100
1910
1890
Impeller rotating
speed(r/min)Ⅱ
2340
2340
1900
1750
1650
Impeller rotating
speed(r/min)Ⅲ
2130
2130
1700
1590
1544
Scraper rpmⅠ
15
15
15
15
7.9
Scraper rpmⅡ
30
30
30
30
19.1
Motor power(W)
90
90
90
90
120
Overall dimension
522×263×628
522×263×628
522×263×628
597×276×629
570×315×527
Total weight (kg)
30
30
31
33
50
Application of lab flotation machine
Laboratory XFD Series single grooved flotation machine is used to the geology, metallurgy, building materials , chemical industry and many other industries. Which utilize Float free method to get the required sort minerals for laboratory floater little sample ore using. This machine has 3 main spindles, scraper blade has 2 different speed option, The whole machine is slim, corrosion resisting, beautiful shape and easy operation.
