Flotation Machine
Flotation Machine
Flotation Machine

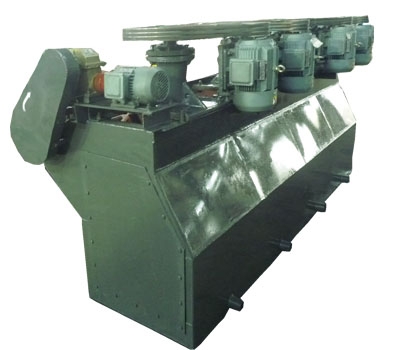

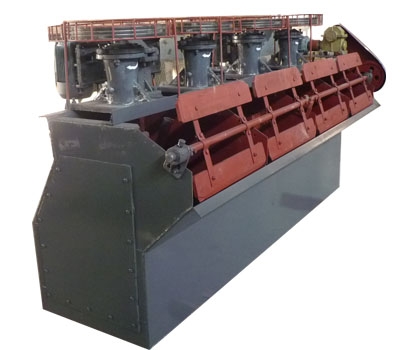

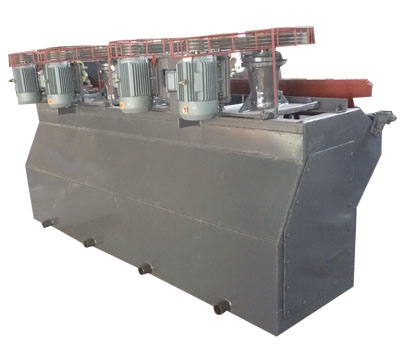

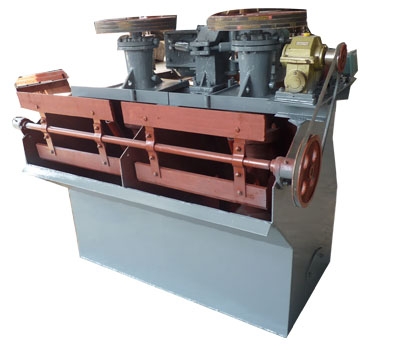

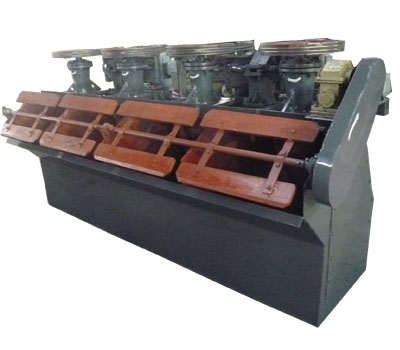

SF series flotation machine is the improved product of A-type.It can self-absorb mineral pulp and self-absorb air, its operating room is allocated horizontally. Compared to A-type, it has larger air-absorption capacity, lower power consumption, longer service life of impeller and cover, without need any supplementary equipment, better dressing efficiency.
Description of flotation machine
SF series flotation machine is not only applied to separating the non-ferrous metal, ferrous metals, precious metals, and chemical raw materials, recycling useful minerals, but also applied to selecting the non-metallic minerals such as the coal, fluorite, talc and so on.
Structure of flotation machine
Working Principle of flotation machine
SF series flotation machine drives the impeller rotate by the V-belt transmission of the motor, and produces the centrifugation effects to form the negative pressure. This flotation machine can inhale adequate air that to be mixed with the slurry. On the other hand, the mixing pulp is intermixed with the drugs. At the same time, refine the bubble, and make the minerals conglutinate on the bubble, and then float on the surface of the ore pulp, to form the mineralized bubble. Adjust the height of the flashboard, control the liquid level, and make the useful bubble scrapped by the scraper blade.
Technical Specification of flotation machine
SF Model
Impeller
Diameter
(mm)
Impeller Rotational
Speed (r/min)
Capacity
(m3/min)
Main Motor
Scraper Motor
Size
(mm)
Model
Power (kw)
Model
SF0.15
200
536
0.06-0.18
Y100-6
1.5
Y80L-4
0.55
500×500× 600
SF0.37
296
386
0.2-0.4
Y90L-4
1.5
Y80L-4
0.55
700×700× 750
SF-1.2
450
312
0.6-1.2
Y32M-6
5.5
90S-4
1.1
1100×1100× 1100
SF-2.8
550
268
1.5-3.5
Y180L-6
11
Y100L6
1.5
1700×1600× 1150
SF-4
650
220
2-4
Y200L-8
15
Y100L6
1.5
1850×2050× 1200
SF-8
760
191
4-8
Y250M8
30
Y100L6
1.5
2200×2900× 1400
SF-10
760
191
5-10
Y250M8
30
Y100L6
1.5
2200×2900× 1700
JIF-4
410
305
2-5
Y160L-6
11
Y100L6
1.5
1600×2150× 1250
JIF-8
540
233
4-10
Y200L26
22
Y100L6
1.5
2200×2900× 1400
JIF-10
540
233
4-12
Y200L26
22
Y100L6
1.5
2200×2900× 1700
Application of flotation machine
SF series flotation machine is the improved product of A-type. It can self-absorb mineral pulp and self-absorb air, its operating room is allocated horizontally.
